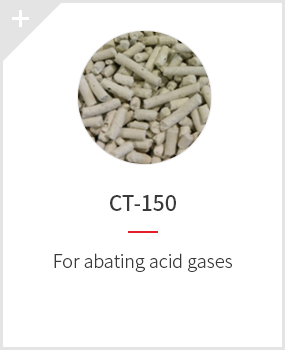

CT-150

Applicable gas
Cl₂, BCl₃, HF etc.
Features
- Removal of Cl₂, BCl₃, HF by chemical reaction
- No additional harmful gases and by-product
- Excellent performance in high space velocity
- Possible to use for a long time.
Applications
- Semiconductor production line
- Chemical factory
- Display production line
Product type
Pellet, Ball type (2 ~ 5 mm)

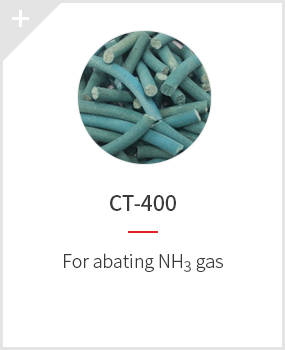

CT-400

Applicable gas
NH₃
Features
- Removal of NH₃ by chemical reaction
- No additional harmful gases and by-product.
- Excellent performance in high space velocity.
- Possible to use for a long time.
Applications
- Semiconductor production line
- Chemical factory
- Display production line
Product type
Pellet, Ball type (2 ~ 5 mm)

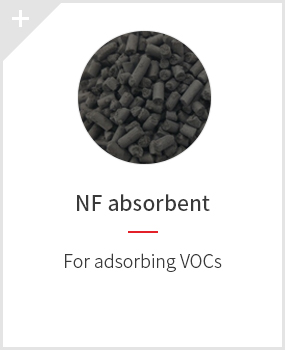

NF (Non-flammable) absorbent

Applicable gas
VOCs
Features
- Non-flammable and no risk of explosion
- High specific surface area (BET > 500 m2/g)
- Applied in various forms and size (pellet or spherical shapes)
Applications
- Chemical factory
- Paint manufacturing plant
- Semiconductor, OLED manufacturing process
Product type
Pellet, Ball type (2 ~ 5 mm)

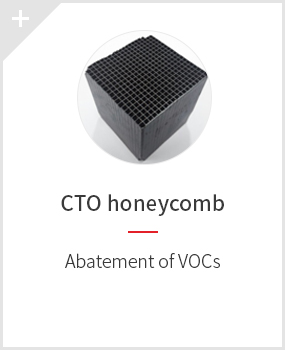

CTO honeycomb catalyst

Applicable gas
Organic compounds
Features
- Excellent performance at low temperature ( > 325oC)
- High life time
- High stability
Applications
- Chemical factory
- Semiconductor, OLED manufacturing process
Product type
Honeycomb, Pellet

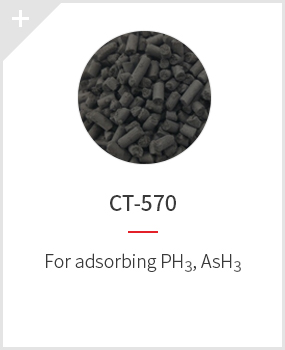

CT-570

Applicable gas
PH₃ AsH₃
Features
- Removal of PH₃ and AsH₃ by chemical reaction
- No additional harmful gases and by-product.
- Excellent performance in high space velocity.
- Possible to use for a long time.
Applications
- Semiconductor production line
Product type
Pellet

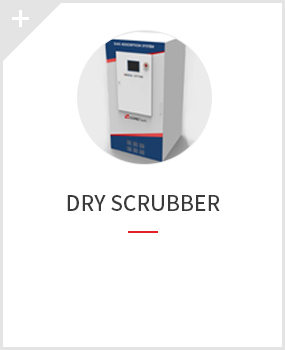

DRY SCRUBBER

Applicable gas
For abating toxic gases (NOx, SOx, VOCs, CO, ETC)
Specification
- Dimension : 820(W) x 870(D) x 1,600(H)
- Utilities : Power AC 220V, 2~4amps
N₂ Pressure : 60~80psi
Gas Connection : NW40
Features
- Various adsorbent types based on applications
- High efficiency treatment
- Reduce maintenance costs through self-production and supply of adsorbents
- Applied minimum Utility (Low power, N₂), System simplification and easy to control
- Safety : automatic control(PLC), S-MARK
- Option : Temperature sensor, Gas Detector
Applications
- Semiconductor production line, LED & LCD Process
- R&D center

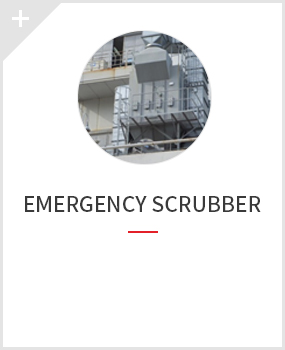

EMERGENCY SCRUBBER

Applicable gas
For abating toxic gases (NOx, SOx, VOCs, CO, ETC) and odor
Specification
- Adsorbents : 3~6mm(Non-Flammable/Non-Toxic)
- Material : SS400, STS, FRP ETC
Features
- Various adsorbent types based on applications
- High efficiency treatment
- Reduce maintenance costs through self-production and supply of adsorbents
- Low operation costs compare to WET SCRUBBER
Applications
- Semiconductor production line
- Hazardous gas emergency exhaust such as gase storage
- Other(Chemical Factory, waste water treatment plant, etc)
